Probe

ASN II 202

Prix normal
$1,260.00
Prix normal
Prix de vente
$1,260.00
Frais d'expédition calculés à l'étape de paiement.
  • Dépêchez-vous 8 éléments en stock!

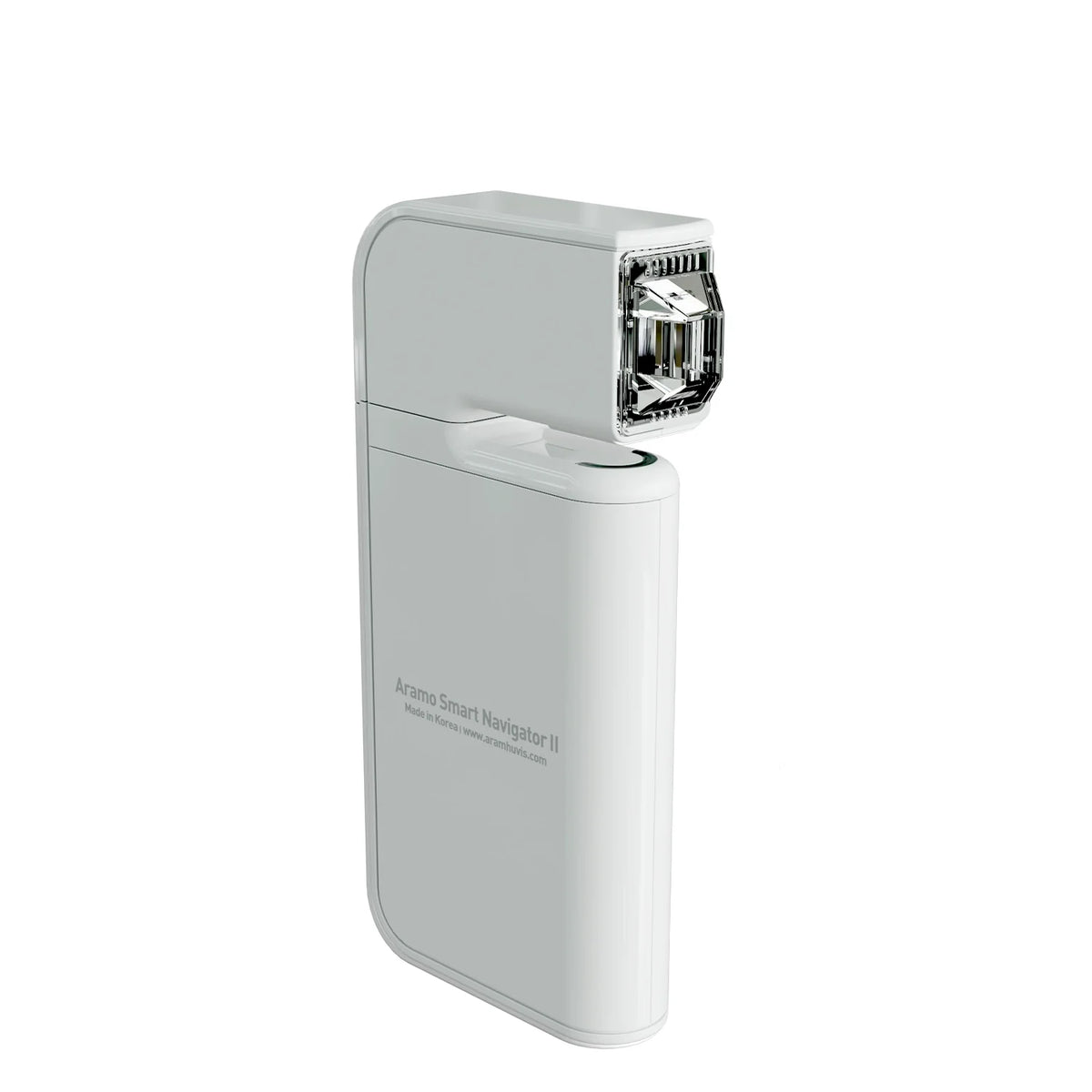

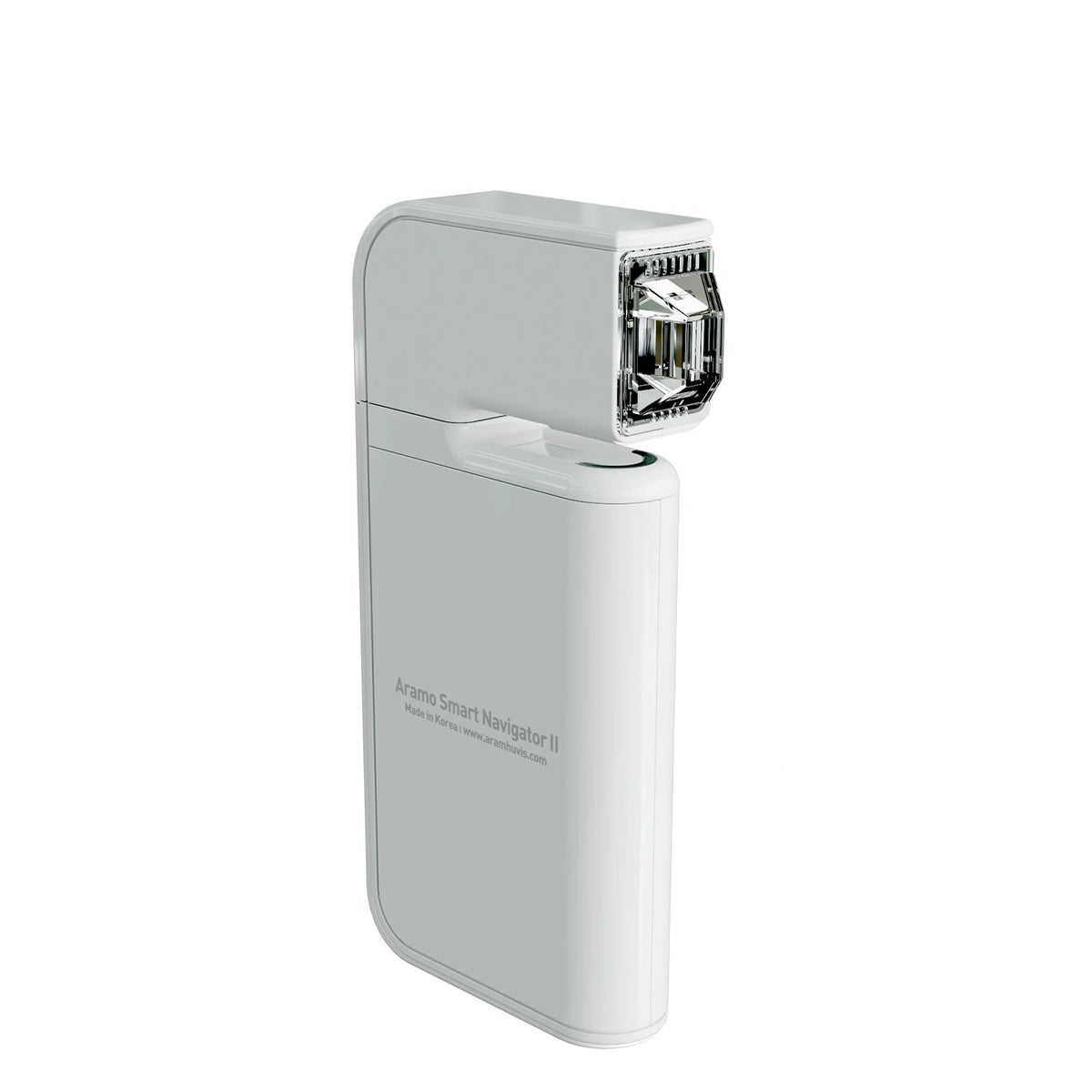

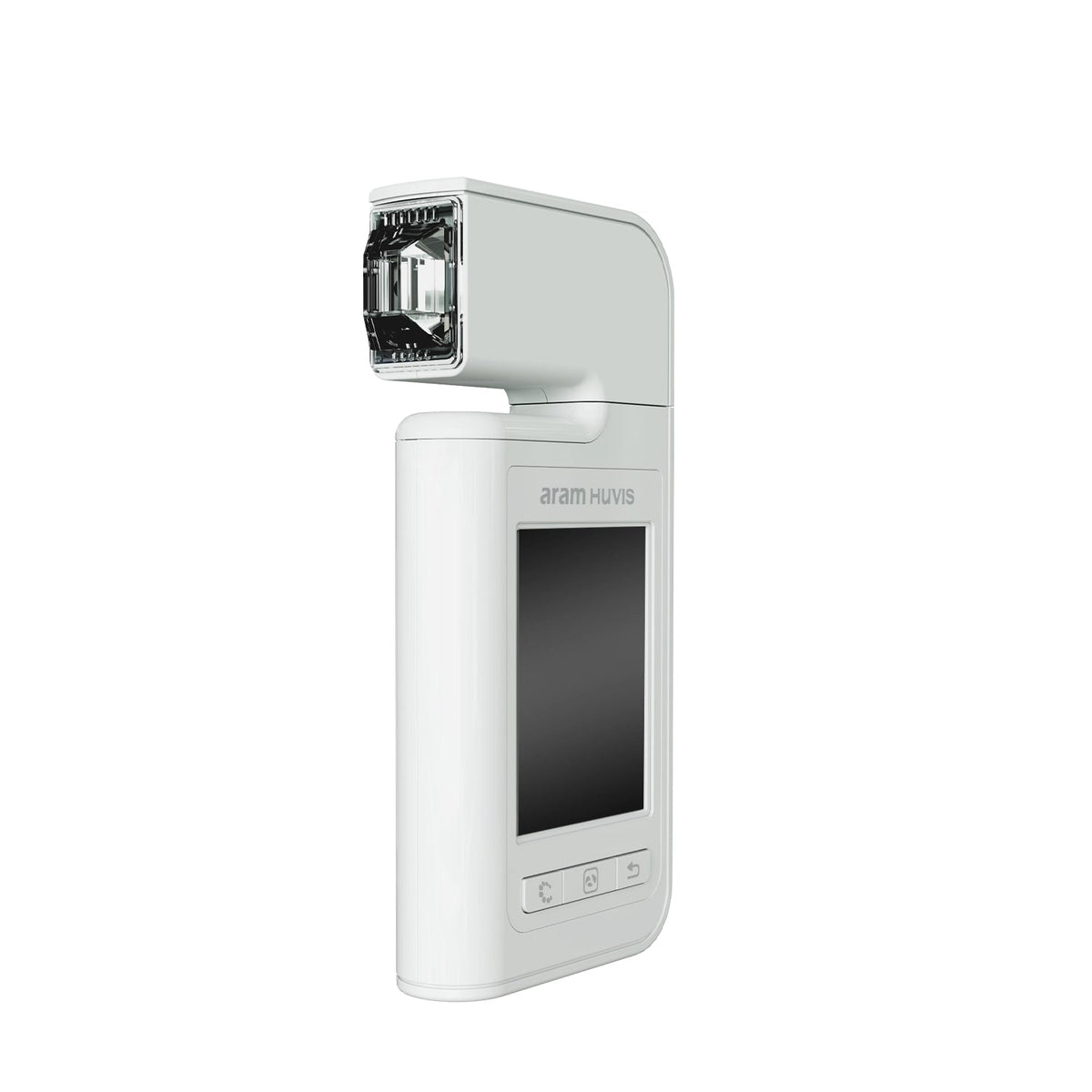

Aramo Smart Navigator — an AI-powered device for scalp and hair analysis, delivering precise diagnostics and tailored solutions for healthier, stronger hair.

ASN II 202
ASN II 202
ASN II 202

Details

Benefits

Experience the ultimate combination of power, precision, and potential with the ASNII model. It is portable, wireless, and lightweight, featuring a screen for high-quality magnification, making it ideal for on-the-go use. The advanced movement of the lens ensures comfortable handling. Perfect for in-depth consultations, showcasing detailed images, personalizing recommendations with your own products and services, and tracking clients' scalp health progress through comparison charts.

Key Features

  • 5 Mega pixels, x 60-200 magnification
  • Multi OS Support - Android, iOS, Windows
  • Before and After comparison
  • CRM integration
  • 2.2" Touch screen
  • Display mirroring via Wi-Fi
  • Turning head of lens for easy use

*Mirroring device not included

ASN II 202

How to Use

ASN II 202

User Manual

To learn how to use and set up the device, download the user manual.

Download user manual

Aram Viewer Software

The Aram Viewer analysis application provides visualization and analysis through high quality images of skin, scalp, and hair cuticle taken by the device's powerful magnification lenses. The application is only compatible with Progen Probe devices.

Download aram viewer software

Instructional videos

Learn more about the device and how to use all its capabilities

Analysis Tutorial

Videos for this section are on the way.

Demo

ASN II 202 Demo

Setup

Videos for this section are on the way.

Technical details

Processor S5PV210 ARM-CORTEX A8 [1GHz]-[SAMSUNG]
Memory DDR SDRAM(512MB) / Micro SD ver2.0(4GB)
OS Support Android 2.3 Google app
Sensor pixel Total pixel: 5,038,848 / Effective pixel: 4,915,200
Image sensor 1/4 Inch Color CMOS [5 mega pixel] High magnification
Image capture 640 x 480 / 2592 x 1944 - [5M]
Display mirroring Wi-Fi (Wireless LAN): Smartphone / Tablet [iOS, Android] PC [Windows, Mac]
LED Dip LED & Chip LED & UV LED
High magnification lens x60 - NL / x60 - PL / x200 - NL (Crop) / x200 - PL (Crop)
Lens Focus VCM Auto / Manual focusing
Weight 120 g
Dimensions 57 x 116 x 18 mm

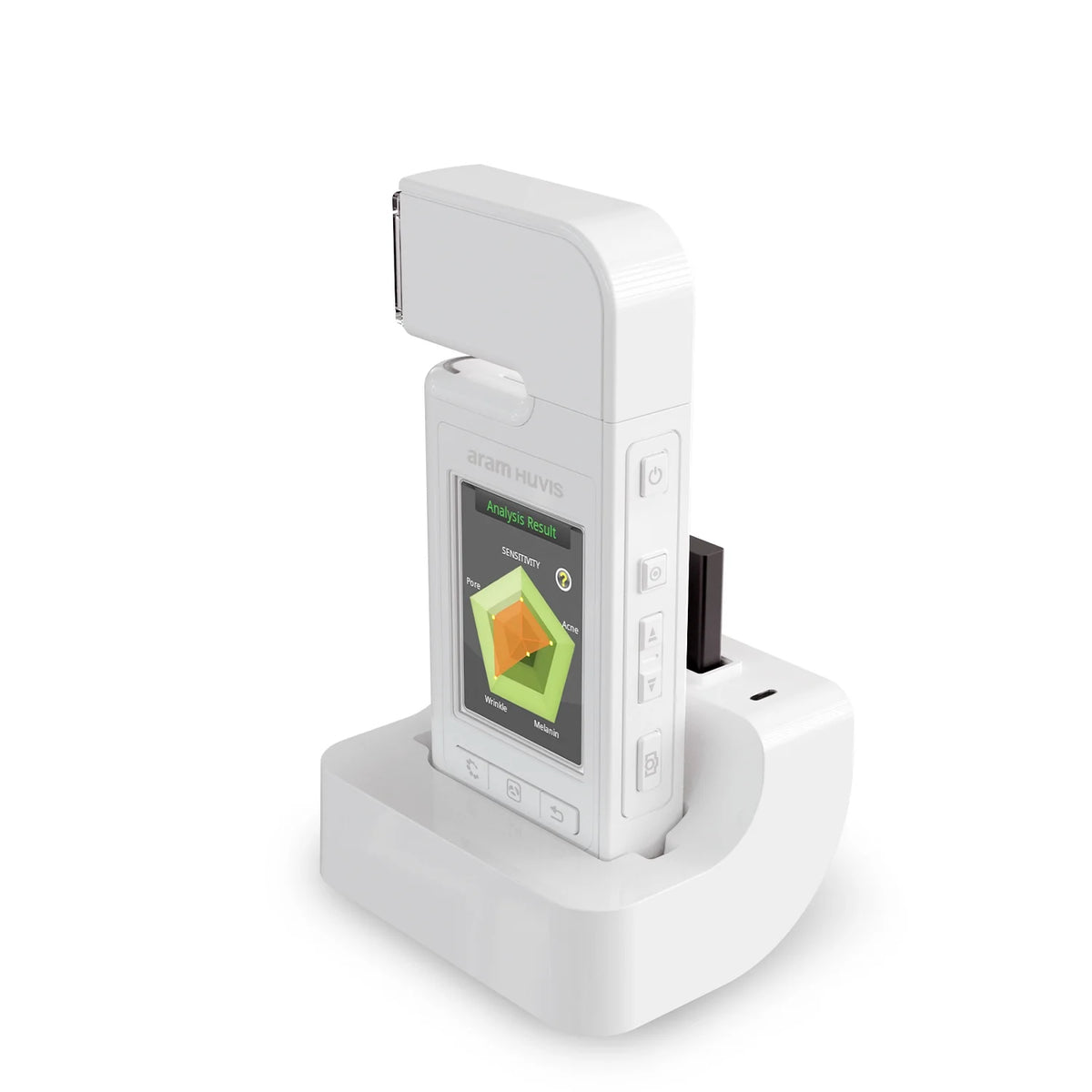

Cradle Battery Charger / File Transfer (USB Interface)
Battery Type: Li-ION / Typical Capacity: 1,150mAh / Normal Voltage: 3.7V
Touchscreen R-Touch TFT LCD 2.2" QVGA 240x320
DC IN adapter 5[VDC] / 2[A]
Operating temperature -10 ~ 50°C
Storage temperature -30 ~ 50°C
Operating humidity 5 ~ 85%
