Probe

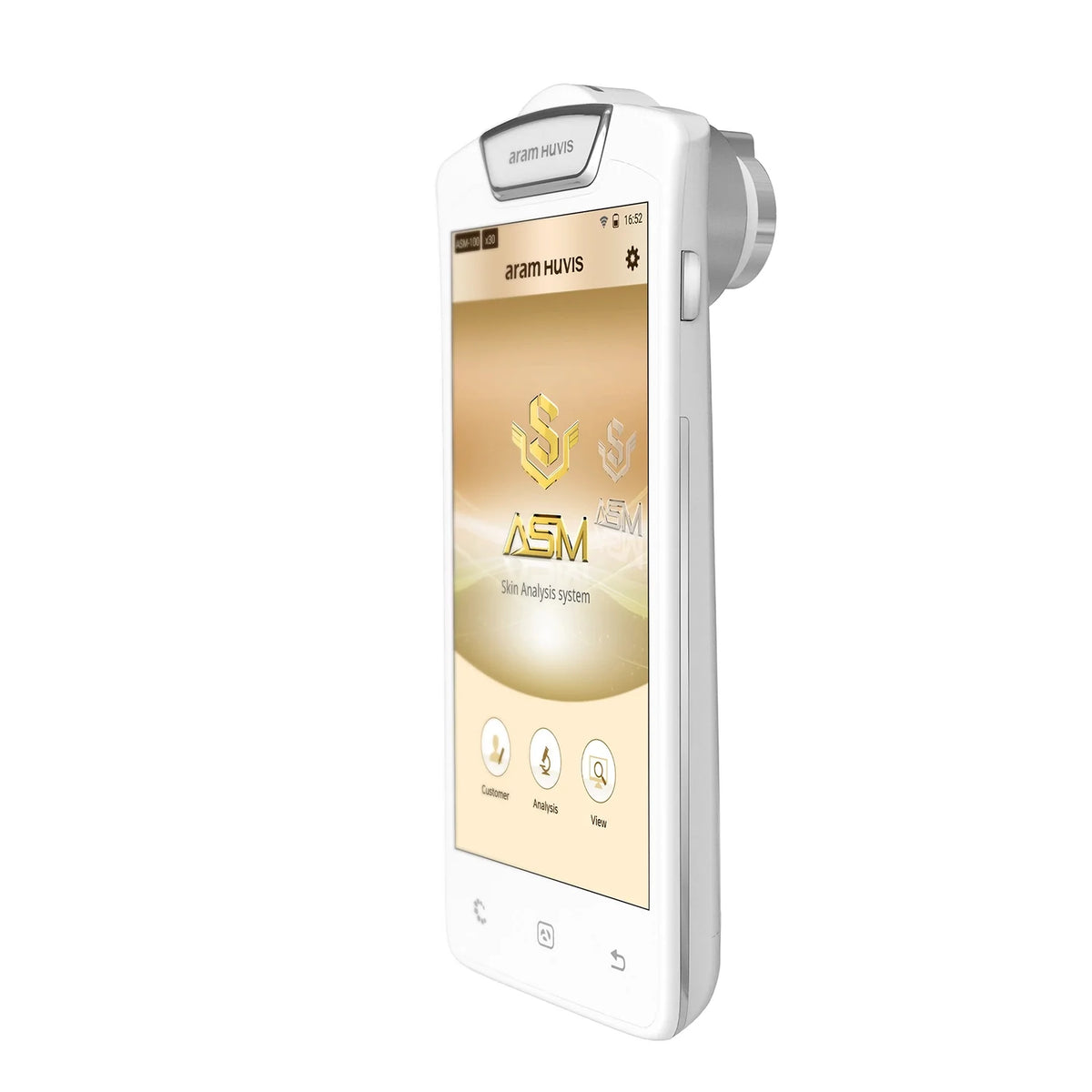

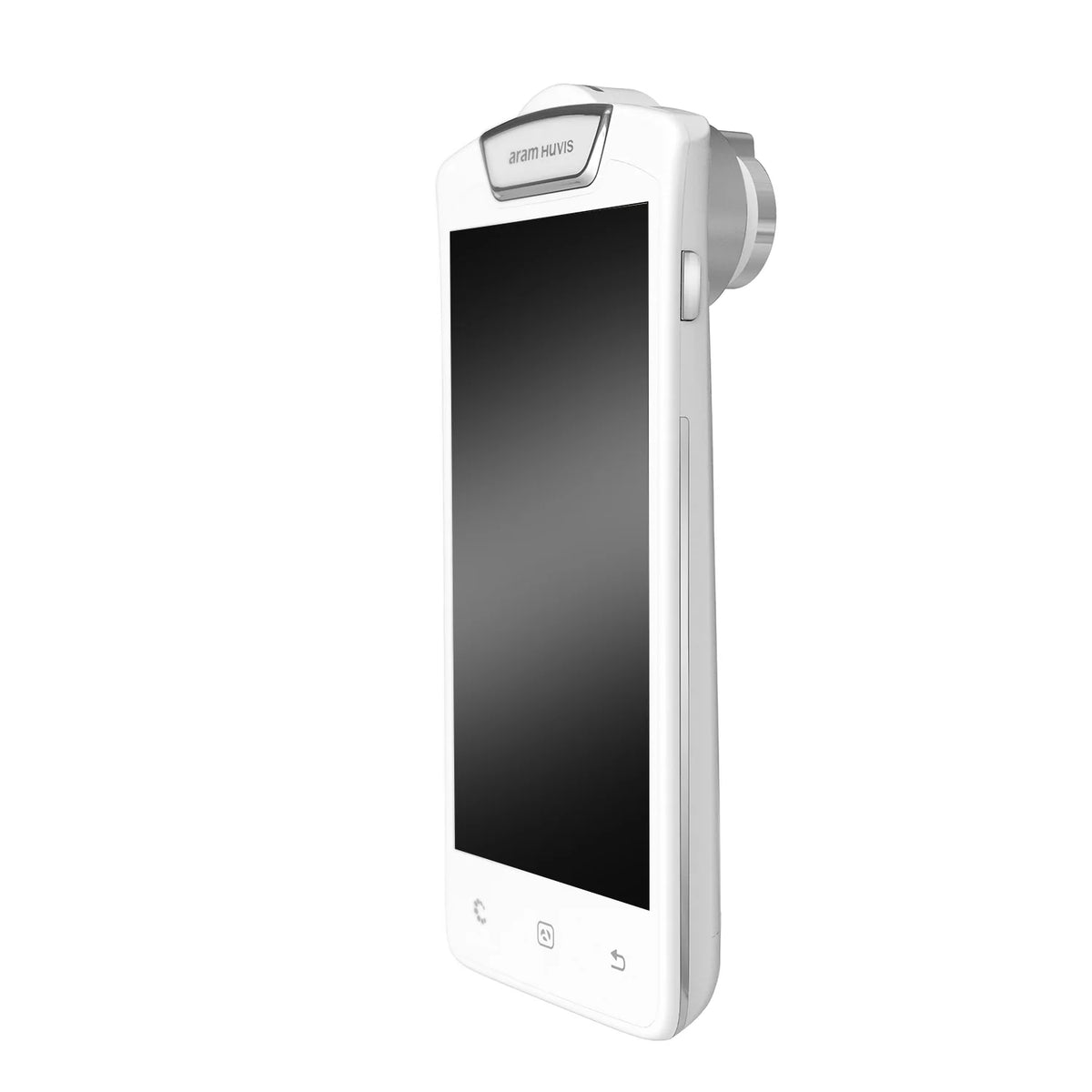

ASM 200

Prix normal
$3,937.00
Prix normal
Prix de vente
$3,937.00

Get 10% OFF: use code EARLYBF10

Frais d'expédition calculés à l'étape de paiement.
  • Dépêchez-vous 10 éléments en stock!

Analyse avancée du cuir chevelu et des cuticules

L'ASM 200 combine une analyse complète du cuir chevelu et une analyse à fort grossissement des cheveux et des cuticules dans un système professionnel à écran tactile.

Il combine les fonctions de l'API 202 et de l'API 203 à l'aide de trois objectifs interchangeables, avec un grossissement allant de 60x jusqu'à 1000x.

Comme le logiciel d'analyse et l'écran tactile de 5,5 pouces sont intégrés à l'ASM 200, un ordinateur portable ou une tablette séparée n'est pas nécessaire pour la navigation habituelle lors des consultations. Un second écran peut tout de même être utilisé lorsque vous souhaitez dupliquer la consultation sur un écran plus grand.

ASM 200
ASM 200
ASM 200

Détails

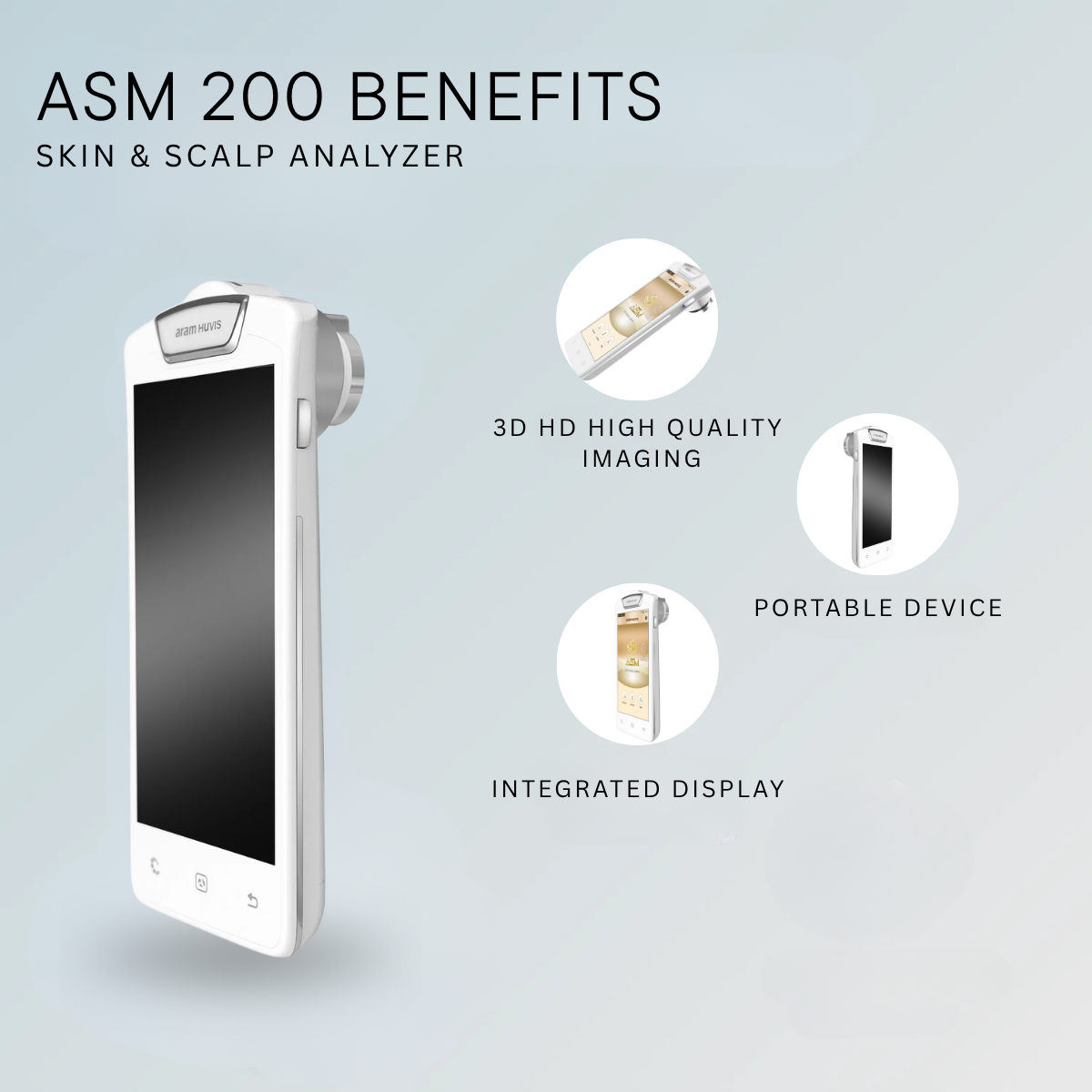

Avantages

Perform detailed scalp and hair strand consultations from a single device.

Instead of choosing between a scalp analyzer and a cuticle analyzer, professionals can examine scalp condition, hair density, buildup, sensitivity, thickness, pores, and cuticle condition during the same consultation.

The ASM 200 is particularly valuable for businesses that want to turn scalp and hair analysis into a premium consultation or recurring service.

Caractéristiques principales

  • Scalp + hair cuticle analysis
  • 60x to 1000x magnification
  • Three interchangeable lenses
  • 5.5 inch touchscreen
  • Built in analysis software
  • Hair loss status
  • Scalp status
  • Hair density
  • Keratin/scalp buildup
  • Scalp vessel exposure/sensitivity
  • Hair thickness
  • Hair pore status
  • Cuticle status
  • Measures multiple hair strands for average thickness
  • Before & after comparison
  • Progress tracking
  • Built in client CRM/database
  • Email results
  • Wi-Fi connectivity
  • Display mirroring

Best for: Trichologists, hair loss clinics, hair replacement businesses, premium salons, scalp specialists, and professionals wanting both scalp and cuticle analysis.

ASM 200

Mode d'emploi

ASM 200

User Manual

To learn how to use and set up the device, download the user manual.

Download user manual

Aram Viewer Software

The Aram Viewer analysis application provides visualization and analysis through high quality images of skin, scalp, and hair cuticle taken by the device's powerful magnification lenses. The application is only compatible with Progen Probe devices.

Download aram viewer software

Vidéos pédagogiques

En savoir plus sur l'appareil et sur la façon d'utiliser toutes ses fonctionnalités

Analysis Tutorial

ASM 200 Analysis Tutorial

Demo

ASM 200 Demo

Setup

Les vidéos pour cette section arrivent.

Détails techniques

Processor ARM Cortex A7 (Octa core)
Memory eMMC 32 GB
OS Support Android 6.01 (Marshmallow)
Sensor pixel Total pixel: 5,038,848 / Effective pixel: 4,915,200
Image sensor Dual camera sensor - 1/4" color CMOS (5 Mega pixel) x1 camera sensor / High magnification
Image capture VGA: 640 x 480 / 5M: 2592 x 1944
Display mirroring Wi-Fi mirroring smartphone, tablet, pc
High magnification lens ASM 202 - x60 - NL and x60 - PL / ASM 203 - x200 / ASM 204 - x500 and x1500 (Crop)
Lens Focus VCM Auto / Manual focusing
Weight 120 g
Battery Type: Li-ION / Typical Capacity: 1,150mAh / Normal Voltage: 3.7V
Touchscreen C-touch TFT LCD 5.5" FHD (1080 x 1920)
Motion 6 Axis
Operating temperature -10 ~ 50°C
Storage temperature -30 ~ 50°C
Operating humidity 5 ~ 85%
